Dimensi |
||
|---|---|---|
| Panjang Keseluruhan | 4.345 mm | |
| Lebar Keseluruhan | 1.795 mm | |
| Tinggi Keseluruhan | 1.645 mm | |
| Jarak Poros Roda | 2.600 mm | |
| Front Tread | 1,530 mm | |
| Rear Tread | 1,535 mm | |
| Jarak Pijak Depan | 915 mm | |
| Jarak Pijak Belakang | 830 mm | |
| Radius Putar Minimum | 5.400 mm | |
| Ground Clearance | 210 mm | |
Mesin |
||
| Jenis | K15C | |
| Isi Silinder | 4 | |
| Jumlah Katup | 4 | |
| Jumlah Silinder | 4 | |
| Diameter X Langkah | 74,0 mm x 85,0 mm | |
| Perbandingan Kompresi | 10,5 | |
| Daya Maksimum | 75.8 PS / 6,000 rpm | |
| Momen Puntir Maksimum | 136.8 Nm / 4.400 rpm | |
| Sistem Bahan Bakar | Spark Ignition | |
Transmisi |
||
| Perbandingan Gigi Akhir | 6 | |
| Ratio Gear | Gear | |
| 1st 4.667 | ||
| 2nd 2.533 | ||
| 3rd 1.556 | ||
| 4th 1.135 | ||
| 5th 0.859 | ||
| 6th 0.686 | ||
| R 3.394 | ||
| F 3.683 | ||
BRAKING TYPE |
||
| Front Brake Type | Disc (ventilated) | |
| Rear Brake Type | Disc (solid) | |
SUSPENSION TYPE |
||
| Suspension Type | Macpherson Strut | |
| Spring Type | Coil Spring | |
| Type of Shock Absorbers | Double Action Telescopic | |
| Stabilizer System | Torsion Bar | |
FORMATION WHEEL |
||

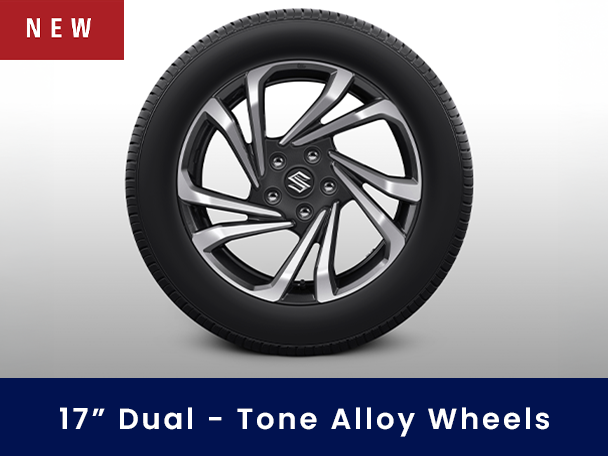

| Tire Size & Wheel Diameter Front | 215/60R17 96H | |
| Tire Size & Wheel Diameter Rear | 215/60R17 96H | |
WEIGHT OF VEHICLE |
GL |
GX |
| Curb Weight [kg] Axis I [FRONT] | 720 | 735 |
| Curb Weight [kg] Axis II [REAR] | 470 | 475 |
| Total | 1.190 | 1.210 |
